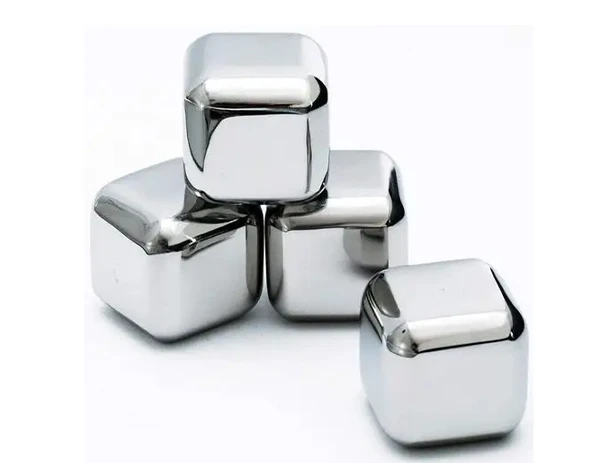

Typical Grades: 304, 316L, 17‑4PH, CF8M
Key Properties & Applications: Corrosion resistance, high strength – valve bodies, marine parts, medical instruments, food equipment

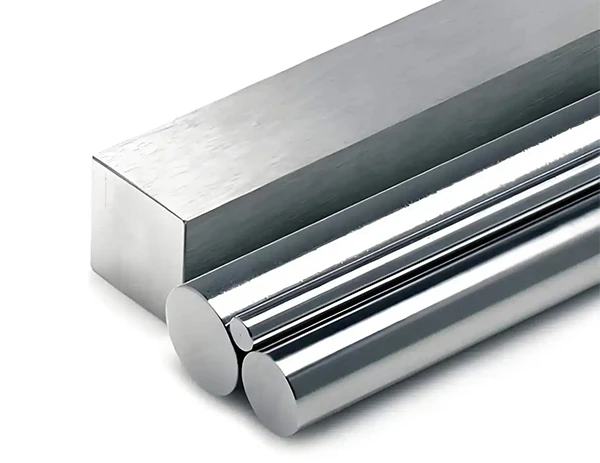

Typical Grades: 1020, 1045, 4140, 4340
Key Properties & Applications: High strength, wear resistance – machine frames, gear blanks, heavy equipment parts

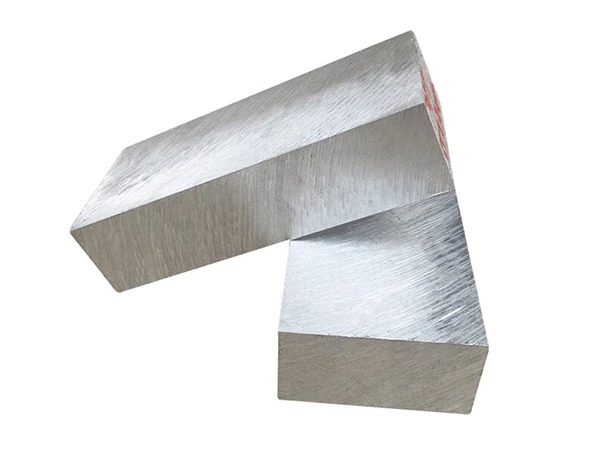

Typical Grades: A356, A380, 6061 (cast equivalents)

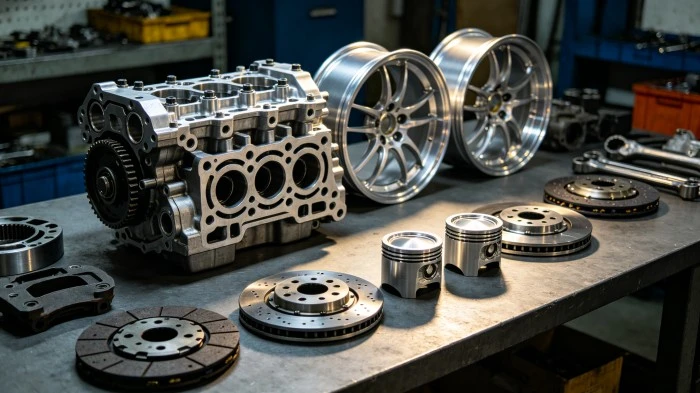

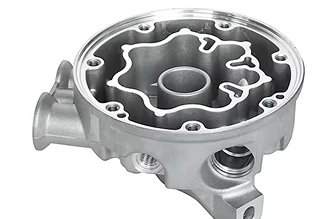

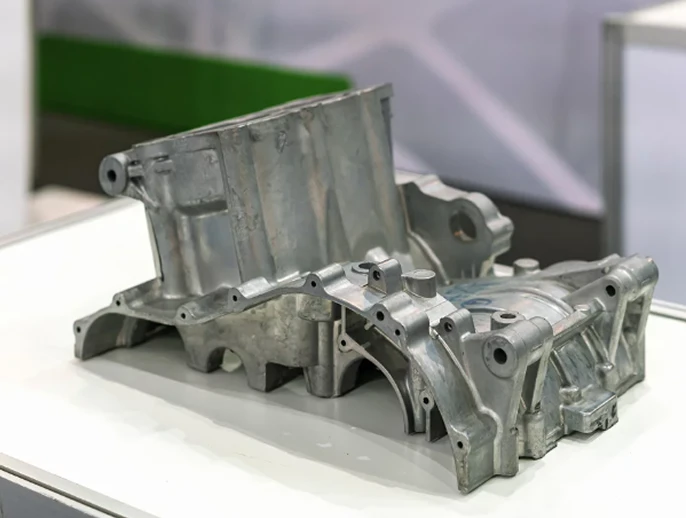

Key Properties & Applications: Lightweight, good thermal conductivity – automotive wheels, pump housings, heat sinks

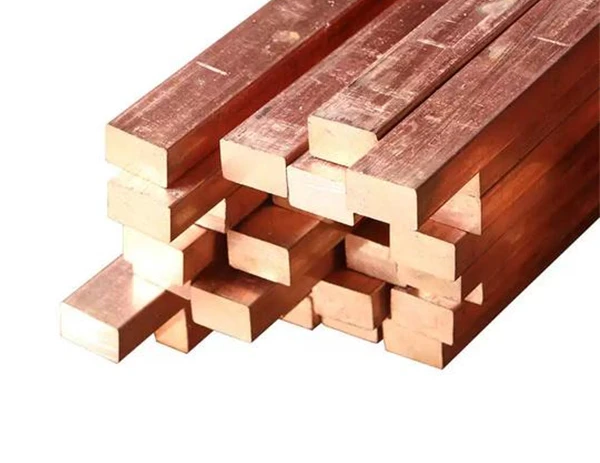

Typical Grades: C83600 (bronze), C36000 (brass)
Key Properties & Applications: Wear resistance, corrosion resistance – bushings, valve seats, propellers
Typical Grades: Inconel 718, Hastelloy, Stellite
Key Properties & Applications: Extreme heat and corrosion resistance – turbine blades, chemical processing components

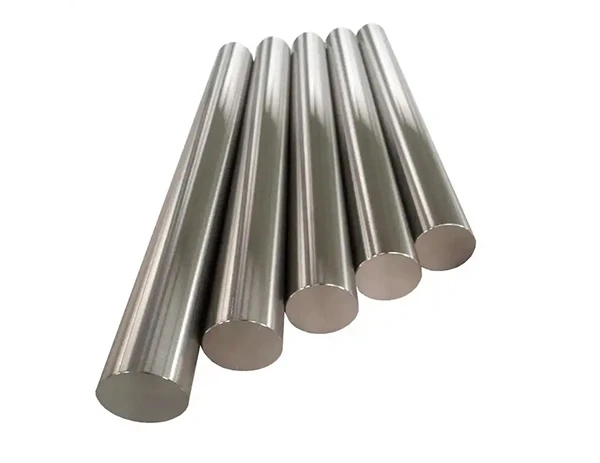

Typical Grades: Ti‑6Al‑4V (Grade 5)
Key Properties & Applications: High strength‑to‑weight ratio, biocompatible – aerospace structural parts, medical implants
|
Parameter |

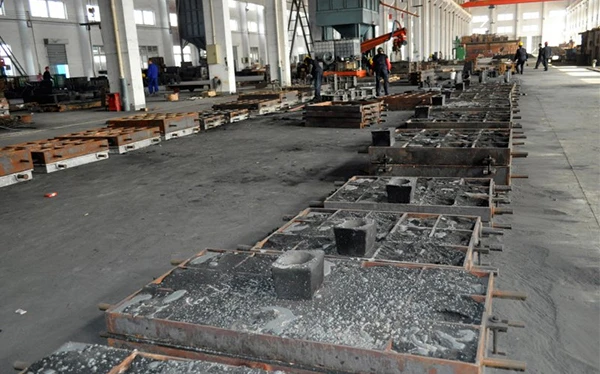

Sand Casting |

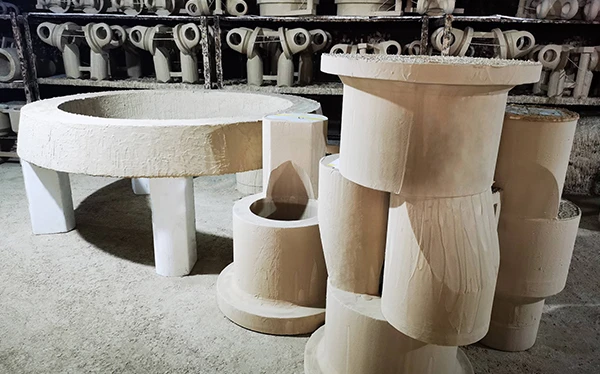

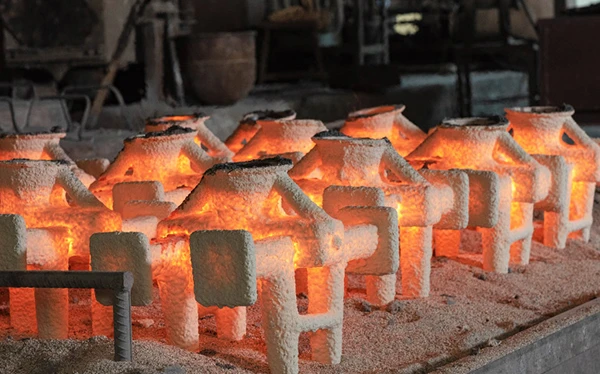

Investment Casting |

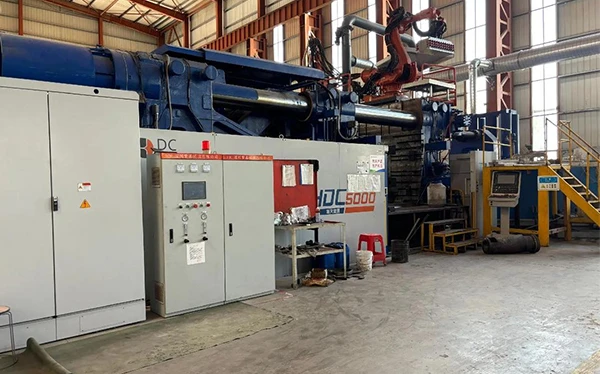

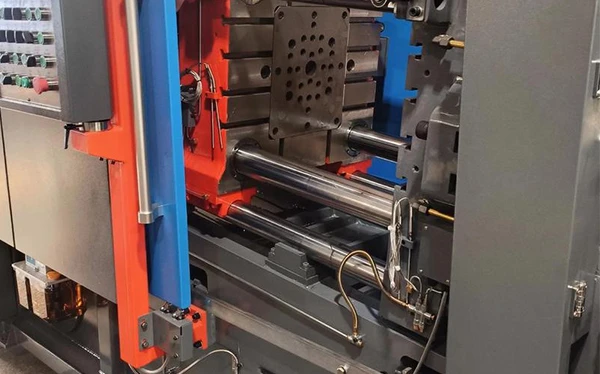

Die Casting |
|
Typical tolerance |
±0.5 – 2.0mm |
±0.1 – 0.3mm |
±0.05 – 0.1mm |
|
Surface roughness (Ra) |
6.3 – 12.5μm |
1.6 – 3.2μm |
0.8 – 1.6μm |
|
Minimum wall thickness |
3 – 5mm |
0.8 – 1.5mm |
0.5 – 1.0mm |
|
Maximum weight |
> 10,000 kg |
~50 kg |
~10 kg (aluminum) |
Detects: Internal porosity, shrinkage, cracks
Typical Acceptance Standard: ASTM E94, ASTM E155 (for castings)
Detects: Subsurface voids, inclusions
Typical Acceptance Standard: ASTM A388, AMS 2630
Detects: Surface cracks, porosity
Typical Acceptance Standard: ASTM E165
Detects: Surface/near‑surface defects in ferrous castings
Typical Acceptance Standard: ASTM E1444
Each casting is marked with a unique ID (laser engraving, dot peen, or tag) linking to
- Material heat number
- Mold/die ID
- Production date and operator
- Heat treatment batch
- Inspection records (NDT, dimensional, mechanical)
- Material certificate (EN 10204 3.1 or 3.2)
- First Article Inspection Report (FAIR) per AS9102 (aerospace)
- NDT reports with images
- Mechanical test reports

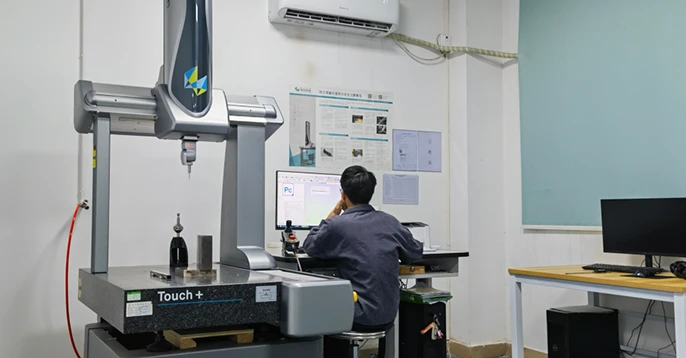

- CMM / scanning reports
